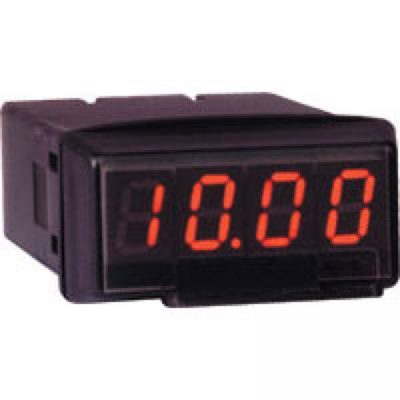

Series LCI132 Process Indicator
Product Applications
-
Display process values from various transmitters
The LCI132 Series process indicators offer flexibility, and value in a low cost, compact 1/32 DIN package. This family of indicators offers input availability for most types of process measurement.
The LCI132 has a 7.62 mm( 0.3″) high display. The shallow depth of these full size panel meters allows installation in panels only 70 mm (2.76″) deep with room to spare.
Inputs are available for Process (0 to 10 V, 4 to 20 mA), AC Volts, AC Amps, DC Volts, and DC Amps.
